Absolute Single-turn, Multi-turn or Incremental Output

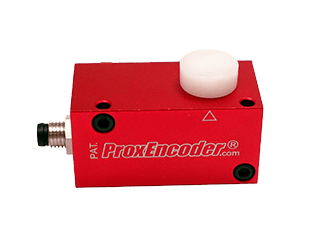

The 18 mm ProxEncoder box is the extremely compact and original Joral non-contact sensor in a rectangular housing. Its smart design allows it to perform better than hall sensors and other traditional magnetic encoders. The PEBX ProxEncoder’s patented true non-contact sensing architecture can achieve a .5” gap between the sensor and target, with 0.10 (12mm) center alignment and up to a 30-degree planar tilt.
Choose from Quadrature, Analog, J1939 Analog Single-Turn, and Voltage outputs. It offers a convenient variety of connectors, including M8, Flying Lead Cable, and shielded flying lead. To provide you with even more mounting options, the PEBX is available in the box-style (PEBX) form factor and a cylinder prox-style (PE18).
And the ProxEncoder non-contact rotary encoder is built to survive in nasty environments, even submerged in water or oil! The IP69K rated constructions and minimal design size means the PEBX can thrive where standard magnetic sensors fail.
If you have any questions Contact Us to help Joral capture your creativity!
Housing Material
Red Aluminum
Anodized for corrosion resistance
Shape
Rectangular
Height
25.4mm (1.0")
Length No Tabs
50.8mm (2.0")
Width
25.4mm (1.0")
Mounting
Mounting holes
Weight
2.4 oz
Magnet Strip / Sensor Gap
12mm (0.5")
Max w/ custom mag assembly up to 30mm (1 in)
Rated Planar Tilt / Axial Gap
Planar 30° (Max 45°) / Axial 2.5mm (Max 4mm)
Rotation Speed
3000 RPM max
Input
6 - 30 Vdc
Approx 60mA, not including output loads
Output
Quadrature, J1939, 0-5 VDC IN / 0-5 VDC OUT, 0-24 VDC IN / 4-20 mA OUT
Electrical Protection
Over-Voltage, Reserve-Voltage, Output Short-Circuit Protected
Connection Type
M8 - Male, Flying Lead Cable, Shielded Flying Lead Cable
LED Indicators
No
Resolution
0.3°
Repeatability
0.30%
Nonlinearity
< 1%
Operating Temperature Range
−40°C to +80°C
Storage Temperature Range
−40°C to +90°C
Shock
400g/6ms (MIL STD 202)
Resists mechanical shock, vibration, temperature, and contaminants
Humidity
100%
Protection Class
IP69k
Vibration
5 to 3000 Hz, 20g (MIL STD 202)
Resists mechanical shock, vibration, temperature, and contaminants
