30mm Linear Position Non-contact Sensor
Non-contact J1939 Linear Position with Absolute “Zero Power” Capability

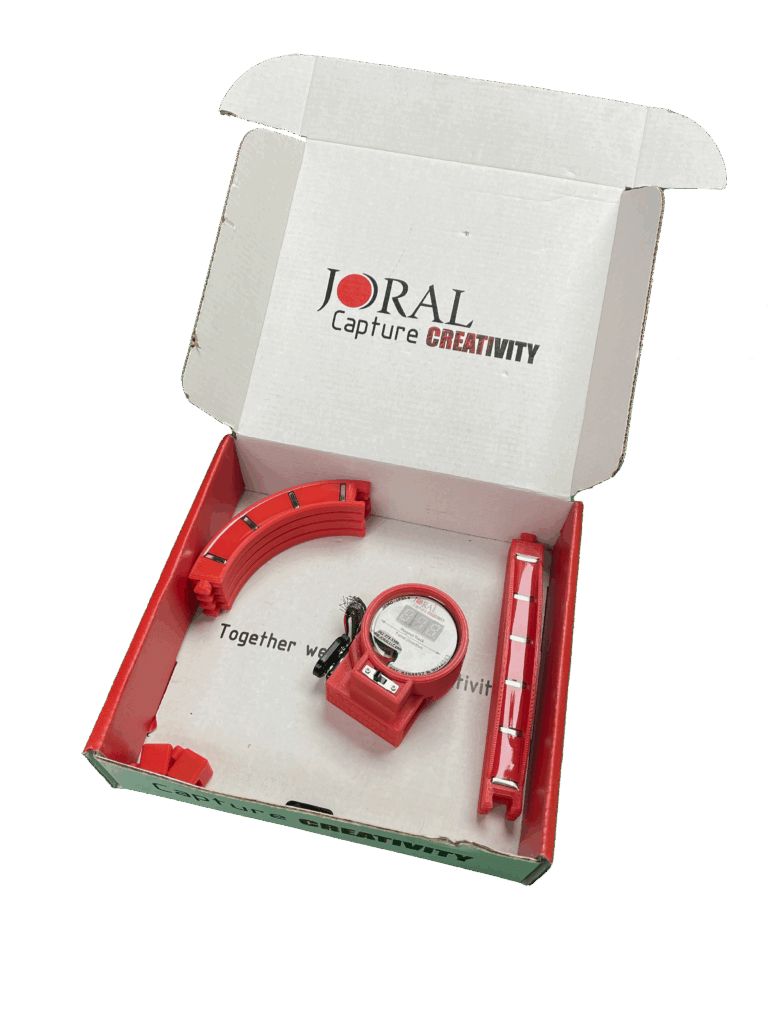

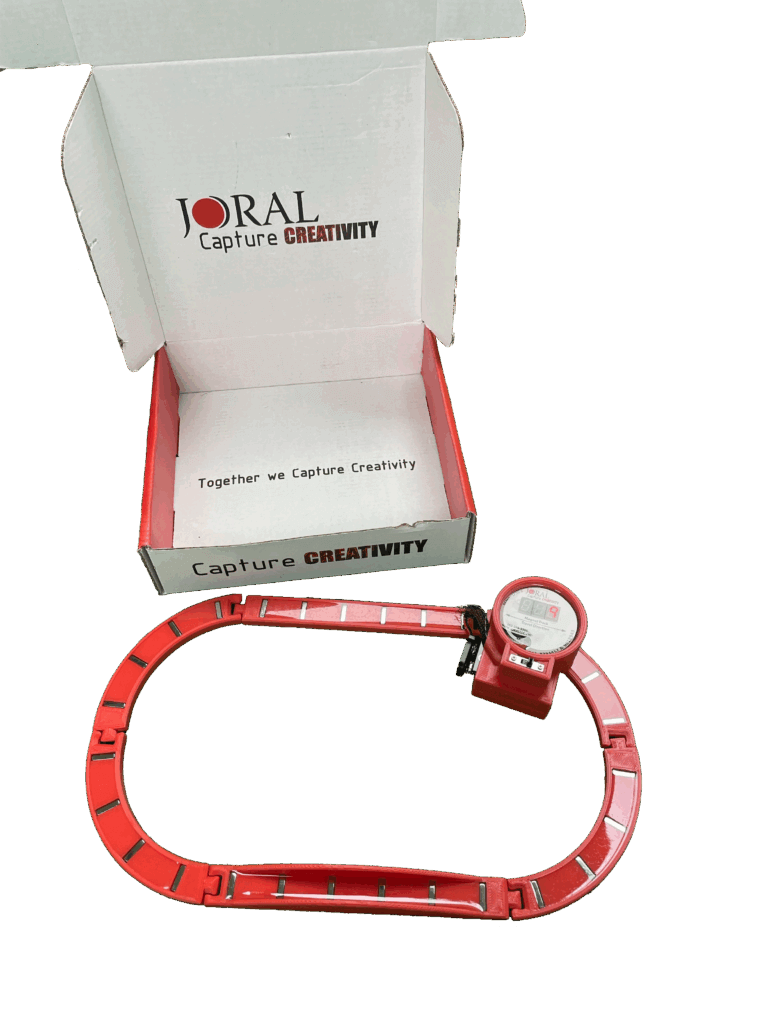

The LP30-X demo kit is a great way to try our patented non-contact technology for linear applications. This 100% free demo kit comes with LP30-X, 3D printed and potted magnet track, 3D printed housing with LED display, and a 9V battery. Contact us to try it for yourself today!
Housing Diameter
30mm (1.2")
Housing Material
Red Aluminum
Anodized for corrosion resistance
Shape
Cylindrical
Height
30.5mm (1.2")
Mounting
30mm proximity switch-style
Weight
2.2 oz
(1 oz without mounting nuts)
Magnet Strip / Sensor Gap
12mm (0.5")
Max w/ custom mag assembly up to 30mm (1 in)
Rated Planar Tilt / Axial Gap
Planar 30° (Max 45°) / Axial 2.5mm (Max 4mm)
Input
6 - 30 Vdc
Approx 60mA, not including output loads
Output
0-5 VDC IN / 0-5 VDC OUT
Electrical Protection
Over-Voltage, Reserve-Voltage, Output Short-Circuit Protected
Connection Type
M8 - Male
LED Indicators
Yes
For power and communication
Resolution
1 count per 0.125"
Operating Temperature Range
−40°C to +80°C
Storage Temperature Range
−40°C to +90°C
Shock
400g/6ms (MIL STD 202)
Resists mechanical shock, vibration, temperature, and contaminants
Humidity
100%
Protection Class
IP69k
Vibration
5 to 3000 Hz, 20g (MIL STD 202)
Resists mechanical shock, vibration, temperature, and contaminants
Use our quick quote request or contact us to have one of our sales team help you with custom options.
